Region Cutting#
[1]:
import pyearthtools.data
import warnings
with warnings.catch_warnings(action="ignore"):
import site_archive_nci
Variables#
[2]:
doi = '2022-01-01T01'
var = 'tcwv'
plot_kwargs = {'figsize': (20,10)}
Problem Space#

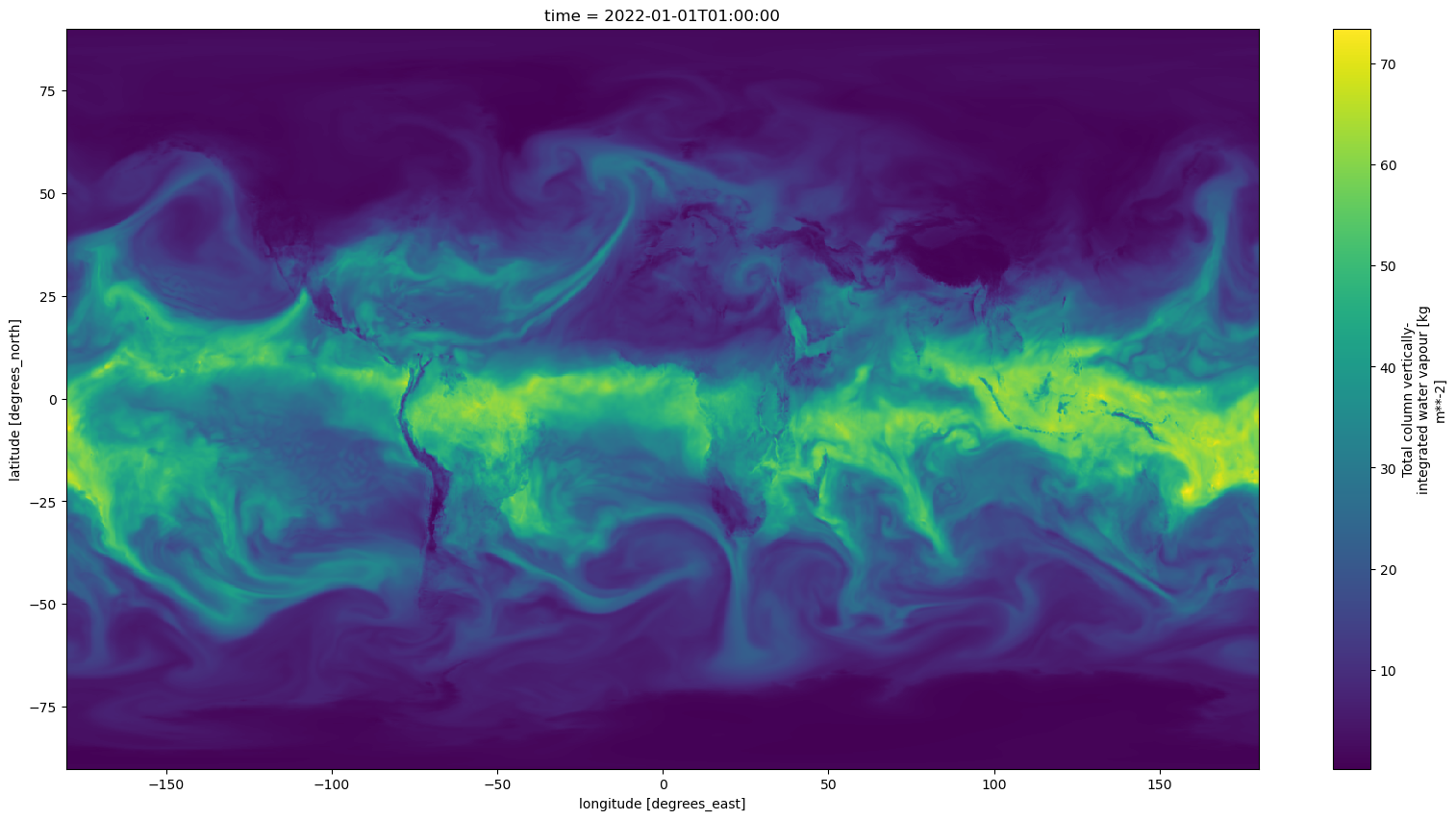

The global dataset’s commonly worked with are quite large, and thus it is useful to cut them to regions of interest
[3]:
era5 = pyearthtools.data.archive.ERA5(var)
era5(doi)[var].plot(**plot_kwargs)
[3]:
<matplotlib.collections.QuadMesh at 0x1495ce067090>
Region Transform#
pyearthtools.data.transform provides a region transform to apply common region cutting when retrieving data.
By using this transform, when retrieving multiple timesteps through series, or other indexing, the data will be culled at the earliest opportunity to limit unneccessary operations.
The region transform provides a few options,
Bounding Box
Reference Dataset
Common String Lookup
Shapefile
Static Shapefile retrieval
Examples#
Bounding Box#
[4]:

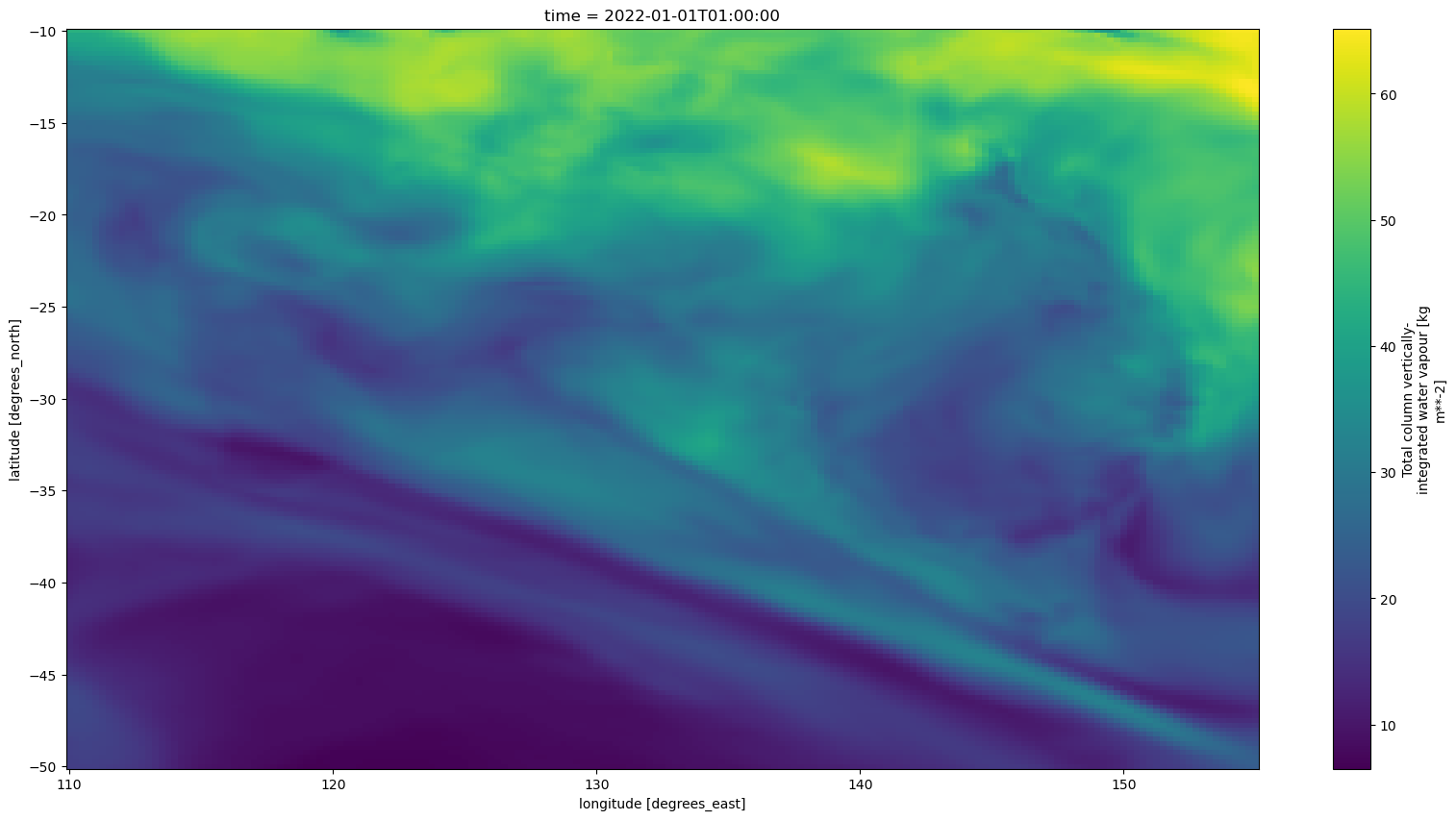

# Approximate Australian region
bounding_box = pyearthtools.data.transform.region.Bounding(-50, -10, 110, 155)
bounding_box
[4]:
Bounding
Initialisation Cut with Bounding box
max_lat -10
max_lon 155
min_lat -50
min_lon 110[5]:
era5(doi, transforms = bounding_box)[var].plot(**plot_kwargs)
[5]:
<matplotlib.collections.QuadMesh at 0x1495cca6ced0>
Matching Dataset Regions#
It is not uncommon for dataset regions not to match. In this case, it is often useful to be able to easily get one dataset with respect to the boundaries of another, smaller dataset. Or, for that matter, the largest intersection of multiple datasets.

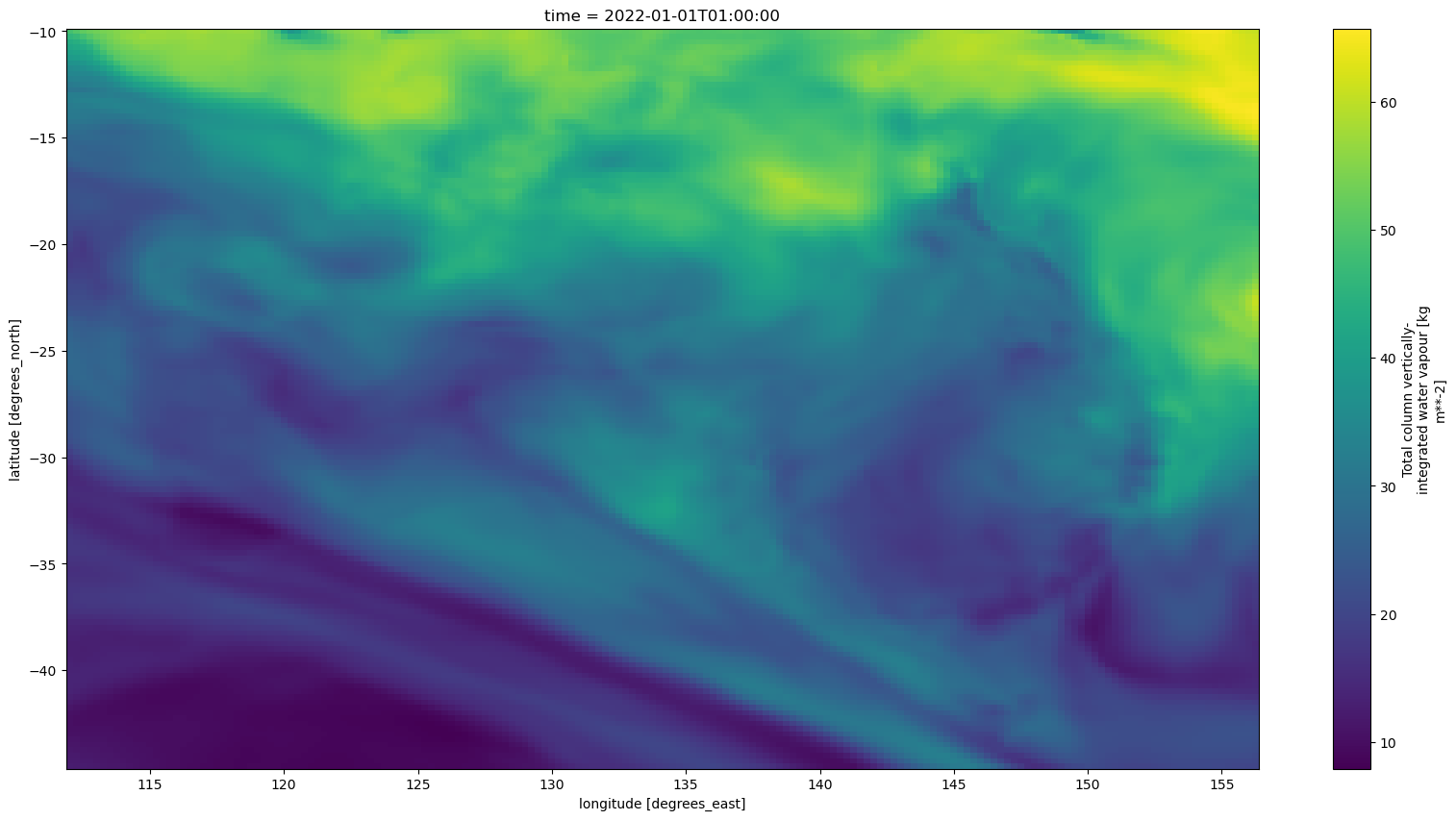

In this example, we use the “like” functionality to subset ERA5 to a bounding box based on the extent of the Himawari satellite observations, without having to go through the exercise of determining that bounding box numerically. The result is similar to the plot above, but not quite the same.
[6]:
like_dataset = pyearthtools.data.transform.region.like(pyearthtools.data.archive.Himawari('cloud_type')(doi))
like_dataset
[6]:
Bounding
Initialisation Cut with Bounding box
max_lat -10.0
max_lon 156.25999450683594
min_lat -44.5
min_lon 112.0[7]:
era5(doi, transforms = like_dataset)[var].plot(**plot_kwargs)
[7]:
<matplotlib.collections.QuadMesh at 0x1495ad3f5050>
Lookup#

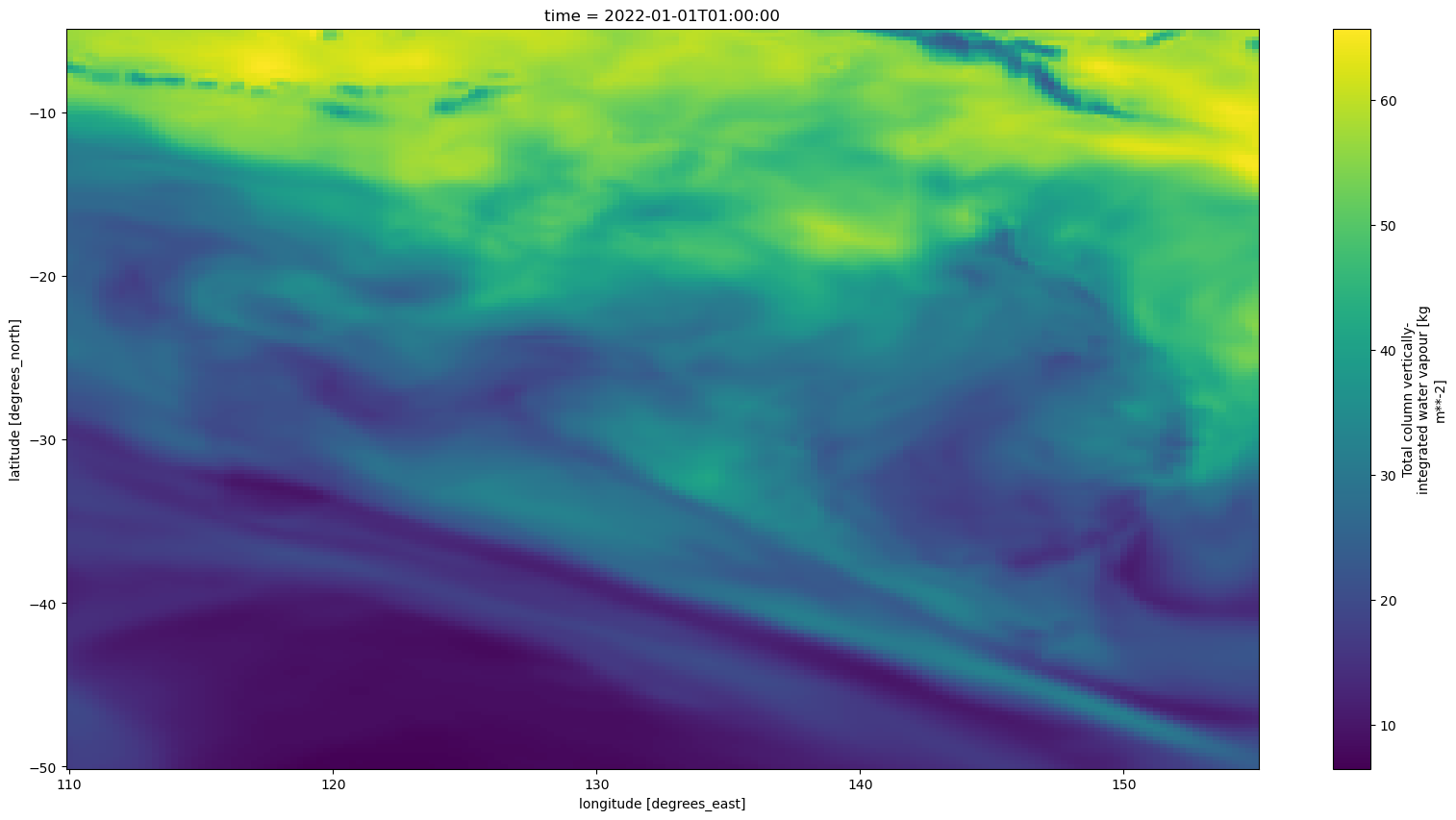

Cut ERA5 to the predefined Australia Region
[8]:
lookup = pyearthtools.data.transform.region.lookup('Australia')
lookup
[8]:
Bounding
Initialisation Cut with Bounding box
max_lat -5
max_lon 155
min_lat -50
min_lon 110[9]:
era5(doi, transforms = lookup)[var].plot(**plot_kwargs)
[9]:
<matplotlib.collections.QuadMesh at 0x1495ad22b790>
from_geosearch#

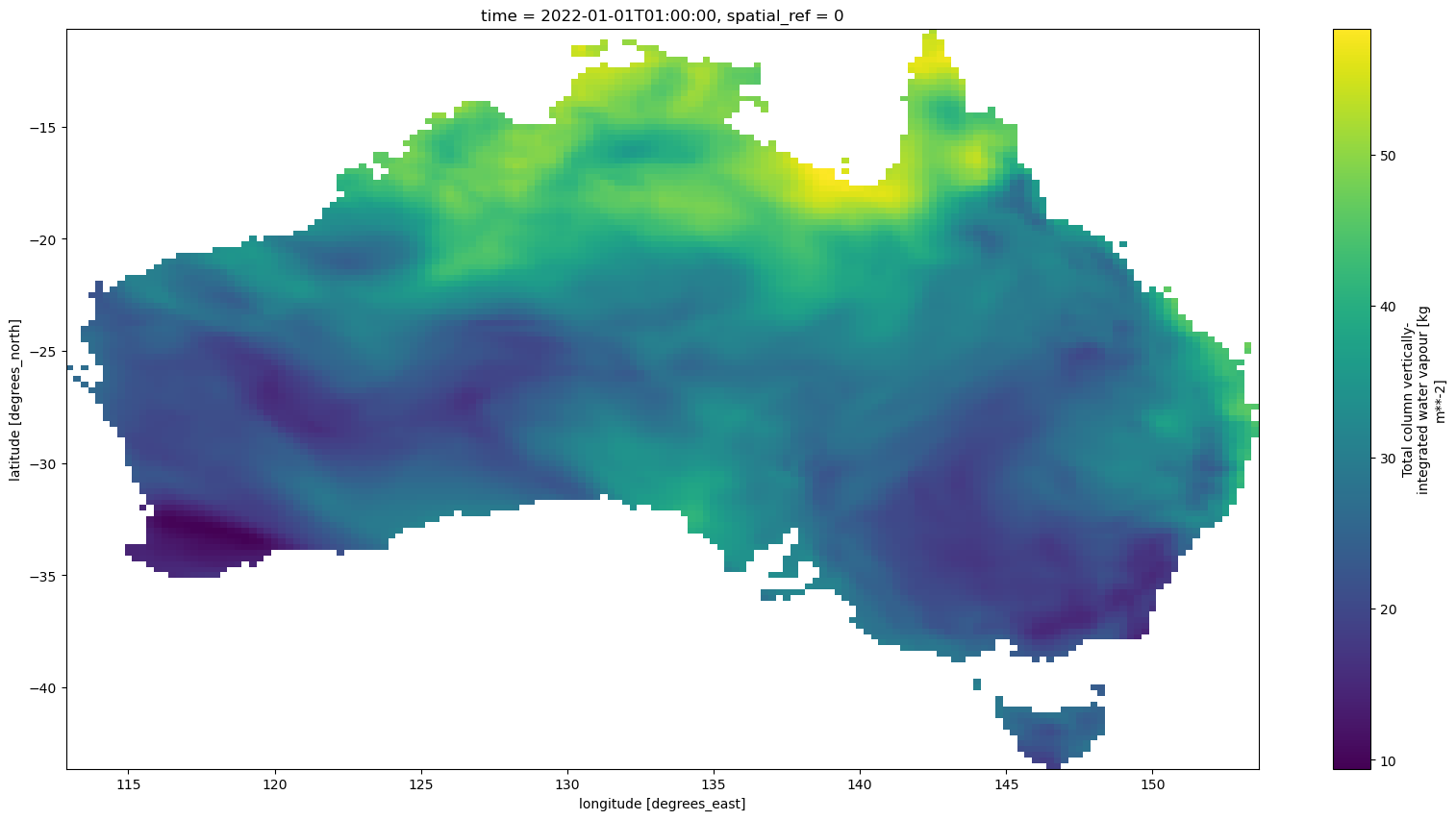

Using a shapefile cut to the Australian Region
[10]:
shapefile_trim = pyearthtools.data.transform.region.from_geosearch('Australia')
shapefile_trim
[10]:
ShapeFile
Initialisation
crs None
shapefile 0 MULTIPOLYGON (((96.91524 -12.15313, 96.91523 -...
Name: geometry, dtype: geometry[11]:
era5(doi, transforms = shapefile_trim)[var].plot(**plot_kwargs)
[11]:
<matplotlib.collections.QuadMesh at 0x149599411ad0>
It is also possible to use the pyearthtools.data.static.geographic sources to search for shapefiles.
[12]:
pyearthtools.data.static.geographic()('World').head()
[12]:
| iso3 | status | color_code | name | continent | region | iso_3166_1_ | french_shor | geometry | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | UGA | Member State | UGA | Uganda | Africa | Eastern Africa | UG | Ouganda | POLYGON ((33.9211 -1.00194, 33.92027 -1.00111,... |
| 1 | UZB | Member State | UZB | Uzbekistan | Asia | Central Asia | UZ | Ouzbékistan | POLYGON ((70.97081 42.25467, 70.98054 42.26205... |
| 2 | IRL | Member State | IRL | Ireland | Europe | Northern Europe | IE | Irlande | MULTIPOLYGON (((-9.97014 54.02083, -9.93833 53... |
| 3 | ERI | Member State | ERI | Eritrea | Africa | Eastern Africa | ER | Érythrée | MULTIPOLYGON (((40.13583 15.7525, 40.12861 15.... |
| 4 | None | Adm. by EGY | EGY | Ma'tan al-Sarra | Africa | Northern Africa | None | Ma'tan al-Sarra | POLYGON ((33.25104 21.99977, 34.15064 21.99603... |
[13]:

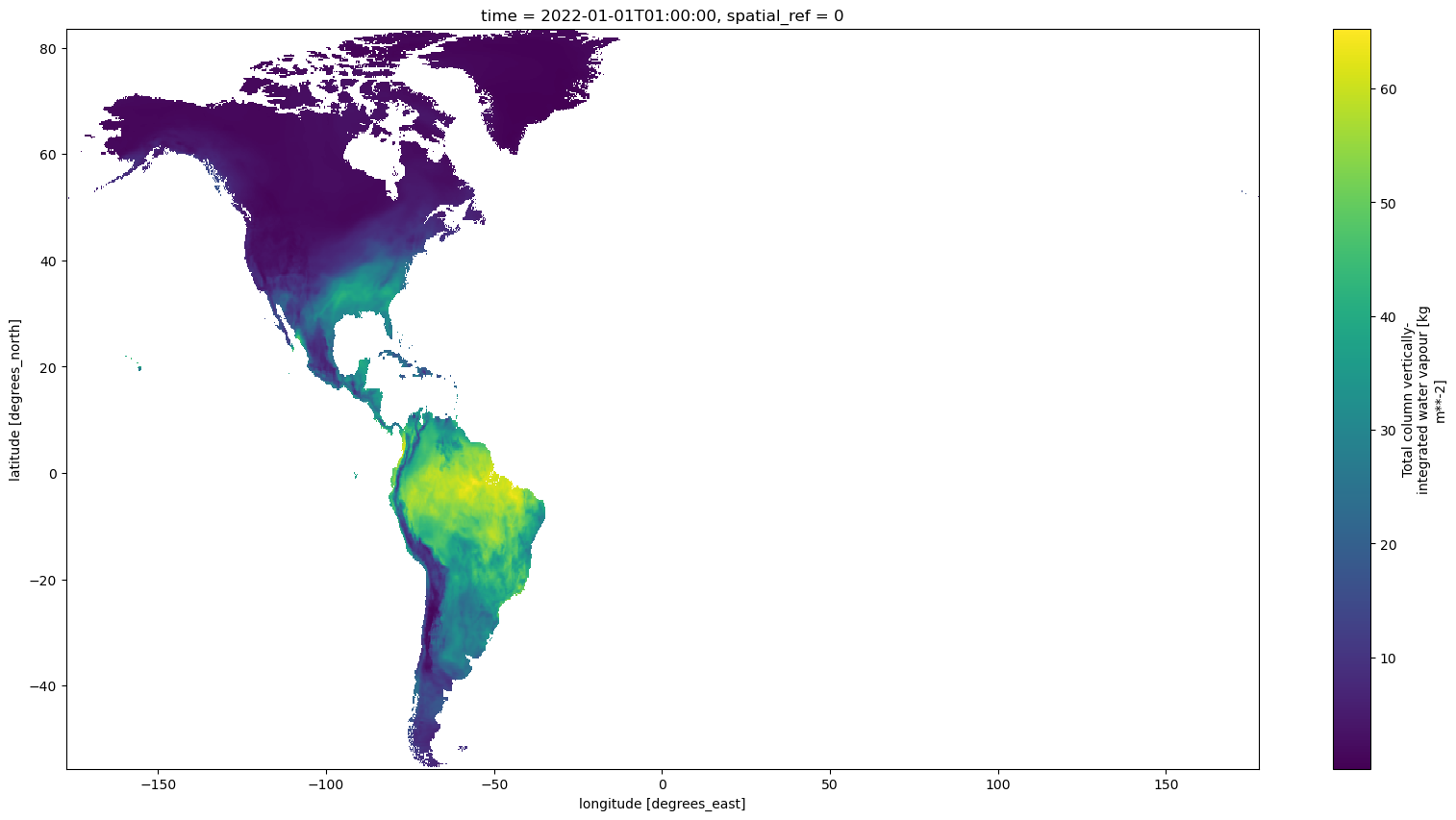

shapefile_trim = pyearthtools.data.transform.region.from_geosearch('World', column = 'continent', value = 'Americas')
shapefile_trim
[13]:
ShapeFile
Initialisation
crs None
shapefile 11 POLYGON ((-69.87486 12.41528, -69.88224 12.411...
14 POLYGON ((-77.68861 18.48639, -77.64002 18.479...
17 MULTIPOLYGON (((-87.81903 17.42902, -87.83153 ...
26 POLYGON ((-51.68407 4.03416, -51.70417 4.02611...
34 MULTIPOLYGON (((-66.87528 44.61944, -66.88612 ...
36 MULTIPOLYGON (((-43.64806 59.84749, -43.84972 ...
39 POLYGON ((-89.14195 17.81889, -89.14223 17.719...
41 POLYGON ((-54.16668 5.3474, -54.1707 5.34222, ...
49 MULTIPOLYGON (((-155.00558 19.32888, -155.1453...
50 POLYGON ((-61.7175 12.00389, -61.74973 11.9969...
51 POLYGON ((-81.0957 19.31264, -81.10556 19.3027...
52 MULTIPOLYGON (((-68.57445 18.12945, -68.56855 ...
62 POLYGON ((-69.95692 -4.23687, -69.95029 -4.262...
64 POLYGON ((-54.59892 -25.57322, -54.62334 -25.6...
71 MULTIPOLYGON (((-64.66084 18.38389, -64.66724 ...
84 MULTIPOLYGON (((-83.13185 14.99298, -83.15889 ...
90 POLYGON ((-62.16556 16.67166, -62.17139 16.671...
93 POLYGON ((-83.13185 14.99298, -83.19667 14.956...
97 POLYGON ((-64.80334 32.2625, -64.82306 32.2605...
105 POLYGON ((-59.51028 13.055, -59.53306 13.05056...
106 MULTIPOLYGON (((-65.44139 18.09028, -65.52501 ...
117 MULTIPOLYGON (((-78.11932 2.50208, -78.12556 2...
122 POLYGON ((-57.2485 5.48611, -57.2716 5.38486, ...
128 MULTIPOLYGON (((-61.18507 8.49674, -61.19417 8...
132 POLYGON ((-61.28028 15.2375, -61.36362 15.1980...
134 MULTIPOLYGON (((-64.76418 17.77861, -64.75598 ...
143 MULTIPOLYGON (((-75.22373 19.90155, -75.22696 ...
144 POLYGON ((-83.6458 10.92485, -83.63747 10.9202...
154 POLYGON ((-53.3743 -33.74067, -53.39917 -33.75...
156 MULTIPOLYGON (((-81.67847 7.38861, -81.64944 7...
157 MULTIPOLYGON (((-68.19736 12.22264, -68.19292 ...
162 MULTIPOLYGON (((-60.92306 10.79722, -60.94445 ...
168 MULTIPOLYGON (((-68.64312 -54.88861, -68.63723...
170 MULTIPOLYGON (((-73.03584 21.14167, -73.12361 ...
171 MULTIPOLYGON (((-67.20889 -55.89104, -67.24695...
174 POLYGON ((-62.70167 17.33694, -62.62251 17.241...
177 POLYGON ((-60.90028 13.77833, -60.93834 13.717...
181 POLYGON ((-89.34831 14.43198, -89.33216 14.410...
190 MULTIPOLYGON (((-61.68459 17.02597, -61.73806 ...
196 POLYGON ((-63.15375 18.16528, -63.16778 18.164...
199 POLYGON ((-160.02114 -0.39806, -160.02811 -0.3...
204 MULTIPOLYGON (((-71.12757 21.44263, -71.14605 ...
205 POLYGON ((-58.15889 -20.16806, -58.13722 -20.1...
206 MULTIPOLYGON (((-82.5446 21.57389, -82.59862 2...
209 POLYGON ((-60.81695 14.47333, -60.82056 14.455...
214 POLYGON ((-177.38806 28.18638, -177.39334 28.1...
218 MULTIPOLYGON (((-61.24556 15.87167, -61.25667 ...
222 MULTIPOLYGON (((-48.55056 -27.82139, -48.55667...
223 MULTIPOLYGON (((-72.81557 18.69889, -72.82584 ...
226 MULTIPOLYGON (((-61.03076 -51.8659, -61.01639 ...
236 POLYGON ((-61.16979 13.13444, -61.18445 13.130...
241 MULTIPOLYGON (((-91.82862 18.63916, -91.83446 ...
244 MULTIPOLYGON (((-80.19335 -3.03472, -80.2114 -...
Name: geometry, dtype: geometry[14]:

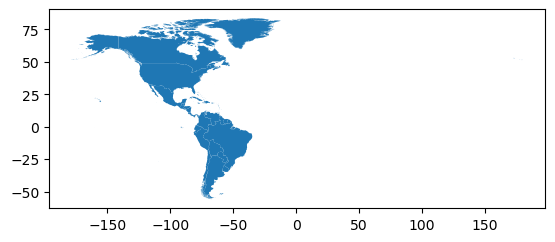

shapefile_trim.plot()
[15]:
era5(doi, transforms = shapefile_trim)[var].plot(**plot_kwargs)
[15]:
<matplotlib.collections.QuadMesh at 0x1495ad508c10>
from_shapefile#
[16]:
shapefile = pyearthtools.data.static.geographic()('World')

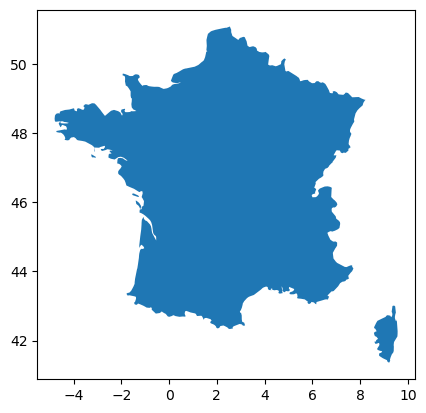

shapefile = shapefile[shapefile.name == 'France']
shapefile.plot()
[16]:
<Axes: >
[17]:
shapefile_trim = pyearthtools.data.transform.region.from_shapefile(shapefile.geometry)
shapefile_trim
[17]:
ShapeFile
Initialisation
crs None
shapefile 152 MULTIPOLYGON (((9.4475 42.68305, 9.45014 42.63...
Name: geometry, dtype: geometry[18]:

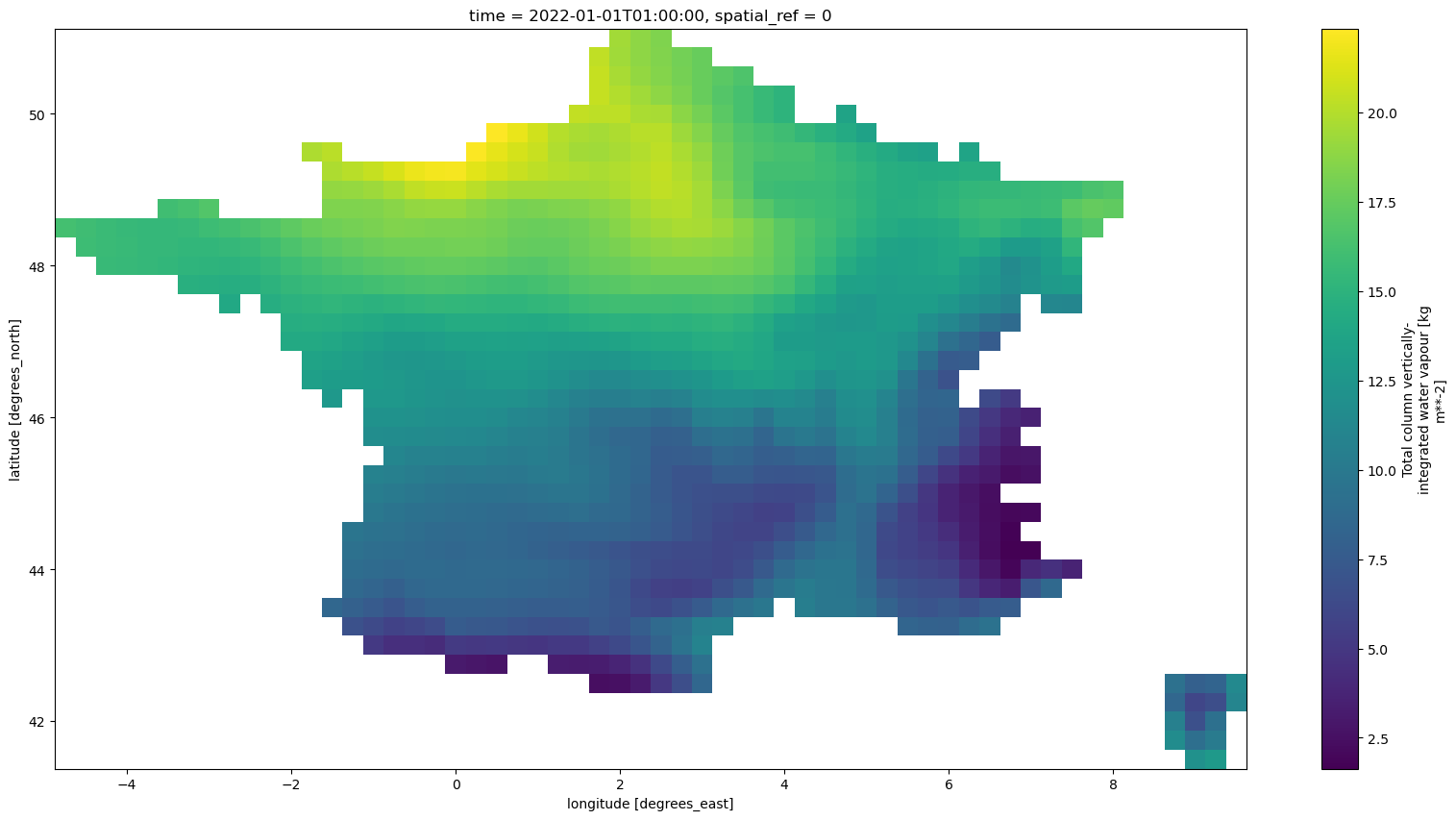

era5(doi, transforms = shapefile_trim)[var].plot(**plot_kwargs)
[18]:
<matplotlib.collections.QuadMesh at 0x149599481150>
[ ]:
